Business Process Management

Concepts, Languages, Architectures (Third Edition)

OR-joins (2)

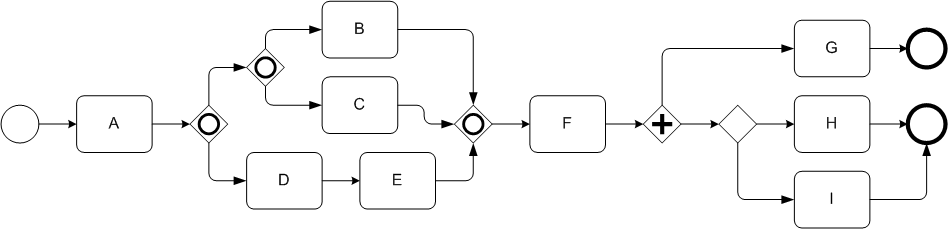

Consider the following BPMN diagram.

a) Explain the different semantics that can be given to OR-joins.

b) Translate the BPMN diagram to a workflow net. Try to resolve all OR-joins in such a way that the execution semantics you choose are properly represented.

c) Is it always possible to map OR-joins to Petri nets? Would the YAWL semantics for OR-joins make any difference to your solution in this example?

More information on OR-joins and the different process modeling languages can be found in the book in chapter 4.
